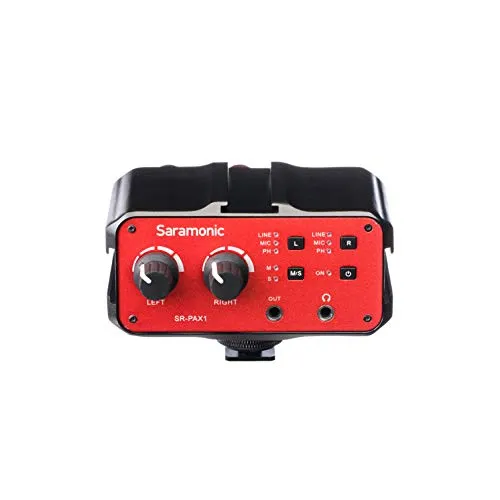

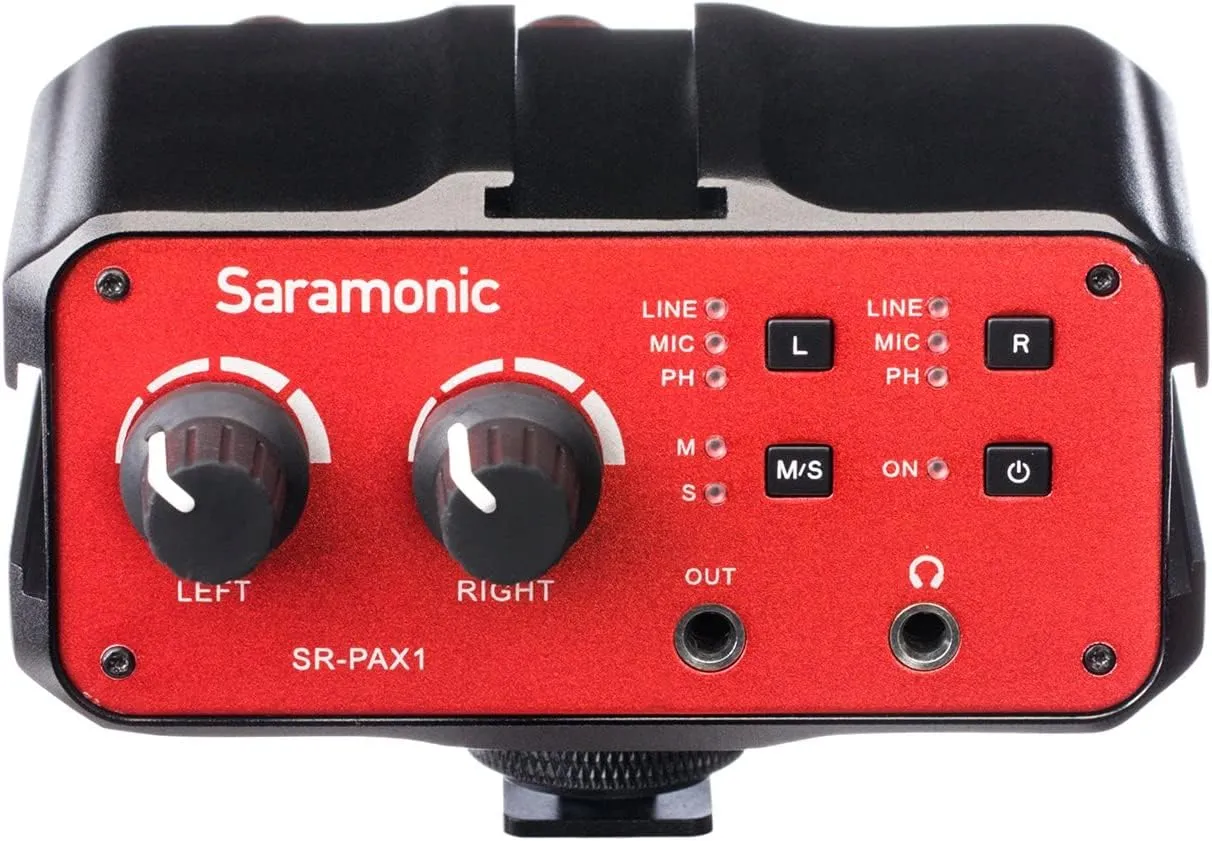

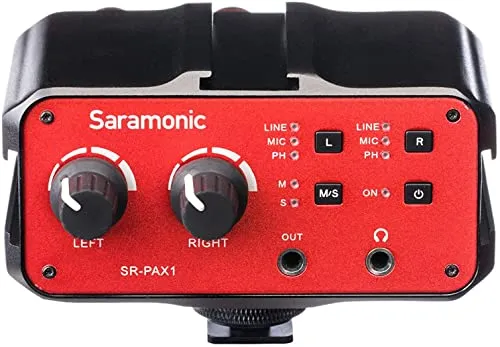

The Saramonic SR-PAX1 is a two-channel audio mixer with phantom power, specially designed for mirrorless digital camera, DSLR camera and camcorder with a microphone jack. It is ideal for recording professional quality audio from two sources and mixing them into your camera.
With two sets of inputs, the SR-PAX1 accepts signals from a wide variety of mic or line level sources such as balanced XLR microphones, wireless microphones, guitars, or any musical instruments with a 6.35mm connector. The 3.5mm inputs are also ideal for connecting audio devices with a 3.5mm output such as a smartphone or an MP3 player. The input levels of each channel can be easily controlled with the dual control knobs. A phone jack allows you to monitor the audio in real time. The SR-PAX1 makes your recording work much easier.
Item with Camera, Microphone and Led Lights
Specifications
Input: XLR & 6.3mm jack x 2;1 /8" (3.5 mm) jack x 3
Output: 1/8" (3.5 mm) jack x 1
Phone: 1/8" (3.5 mm) jack x 1
Frequency Response: 20 Hz to 20 Khz, /-1 dB
THD: Less than 0.01% @ 1 kHz, -30 dBu input
SNR: 74dBu @ 1 kHz, -30 dBu input
L & R Gain: LINE: -30dBu
MIC: 0dBu MIC/PH: 0dBu
Phantom Power: for XLR jacks: 48V power supplies
for 1/8" (3.5 mm) jacks: 5V power supplies
Power Indicator: Power on: LED indicator in blue
Low battery: LED indicator in red
Power Requirements: 9 Valkaline or lithium battery (Not included)
Weight: 357g
Dimensions: (L×W×H) 101.2mm × 85.0mm ×65.5mm
Item Package
Package Content
1* Saramonic SR-PAX1 Mixer
1* 3.5mm Connecting Cable
Manufactory Original Package
