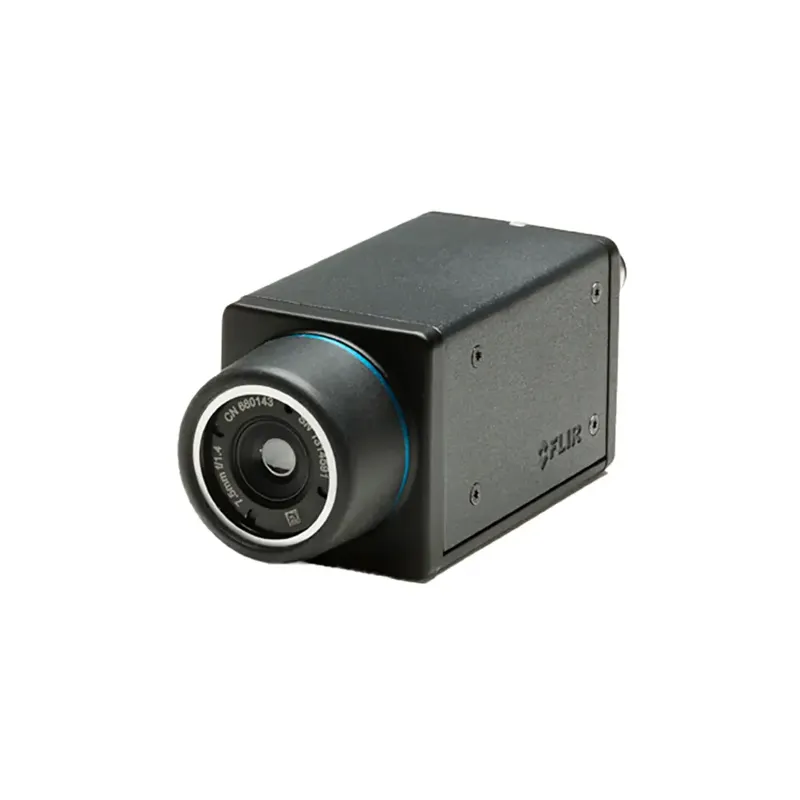

The Teledyne FLIR A35sc 60Hz/320x256 Thermal Camera Benchtop Test Kit empowers users to make fast, accurate thermal measurements without the guesswork. Unlike thermocouples or spot pyrometers that only capture a single point, this advanced camera delivers up to 327,680 precise, non-contact temperature readings across the entire thermal image. Whether for industrial inspection or research applications, it offers a compact and highly portable solution, easily integrated into various test environments.
Streaming via Gigabit Ethernet and supported by powerful ResearchIR software, the A35sc enables real-time viewing, recording, and post-analysis of thermal data. Users can visualize subtle heat differences, automate recordings with advanced conditions, and perform deep thermal analysis using tools like spot, line, and area measurement. Its intuitive interface and flexible mounting options make it an indispensable tool for engineers, scientists, and technicians who need reliable thermal insight.
What's Included:
- 1 - A35 Thermal Camera
- 1 - Manual Focus 48°
- 1 - ResearchIR Software
- 1 - Camera Tripod Adapter
- 1 - PoE Injector
Features
High-Density Thermal Measurement
Capture up to 327,680 accurate temperature readings per thermal image for detailed, repeatable results.
Exceptional Sensitivity and Accuracy
Detect fine thermal differences with a sensitivity of <0.05°C and accuracy of ±5°C or ±5% of reading.
Compact and Portable Design
Weighs under 300 grams, making it easy to relocate between test benches without taking up valuable space.
Real-Time GigE Streaming
Stream thermal video over Gigabit Ethernet for seamless display, recording, and in-depth analysis.
Integrated ResearchIR Software
View and record high-speed sequences, perform post-event thermal analysis, and generate time-temperature plots.
Advanced Analytical Tools
Supports unlimited spot, line, and area measurements, as well as zoom, pan, and customizable data tabs.
Dual Temperature Range
Measure across -25°C to 135°C and extended range -40°C to 550°C for broad application versatility.
User-Friendly Recording Functions
Advanced start/stop triggers and organized file management simplify complex thermal studies.
What's Included
Included with Your Purchase:
- 1 - A35 Thermal Camera
- 1 - Manual Focus 48°
- 1 - ResearchIR Software
- 1 - Camera Tripod Adapter
- 1 - PoE Injector
Specifications
- IR Resolution: 320 x 256
- Image Frequency: 60 Hz
- Thermal Sensitivity (NETD): <0.05°C @ 30°C / 50 mK
- Accuracy: ±5°C or ±5% of reading
- Temperature Range: -25°C to 135°C; -40°C to 550°C
- Streaming Interface: Gigabit Ethernet
- Weight: Less than 300 g
- Software: ResearchIR
FAQ
Q: What makes this thermal camera more effective than a spot pyrometer?
A: Unlike a pyrometer, the A35sc captures thousands of temperature readings in a single image, providing comprehensive thermal data instantly.
Q: Can I stream thermal data in real-time?
A: Yes, the camera streams over Gigabit Ethernet for real-time display and analysis.
Q: Is the software included?
A: Yes, the kit includes ResearchIR software for viewing, recording, and post-processing thermal data.
Q: How portable is the system?
A: It weighs less than 300 grams and is compact enough to easily move between workstations.
Q: What kind of measurements can the software perform?
A: The software supports spot, line, and area analysis, with customizable data visualization and automated recording triggers.
